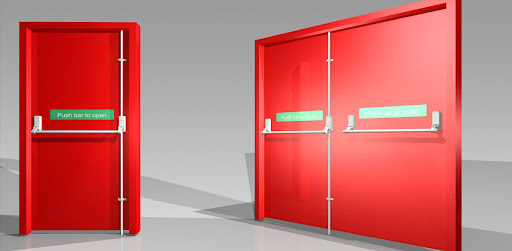

Fire doors
Door leaves:
Constructed from 1.2mm Thick Galvanized Steel Sheet formed to provide a 46mm thick fully flush, Double skin door shell with Lock Seam joints at stile edges. Internal Reinforcements are provided
at top, Bottom and Stile Edges for Fire Rating. The internal construction of the door is a specially designed Mineral Wool Insulation With reinforcements at top, bottom and stile surrounds. The internal construction of
the door varies with the degree of Fire Rating as tested FOR 2 hrs Fire rated - 138Kg/m3 density mineral wool.
Door frames:
Produced from 1.6mm thick galvanized steel sheet formed to single rebate profile of size 143mm X 58mm. The door frames may be built into the brick or block walls using corrugated "TEE" anchors
not welded to the Frames (First Fix). Frames may also be fixed on plastered openings with the help of Metallic Expansion Shield with counter sunk screw (Second fix). Door Frames are supplied to knock-down form with butt
joints for bolted assembly at site.
