Fixed speed hydropneumatic system

Fixed speed hydropneumatic system

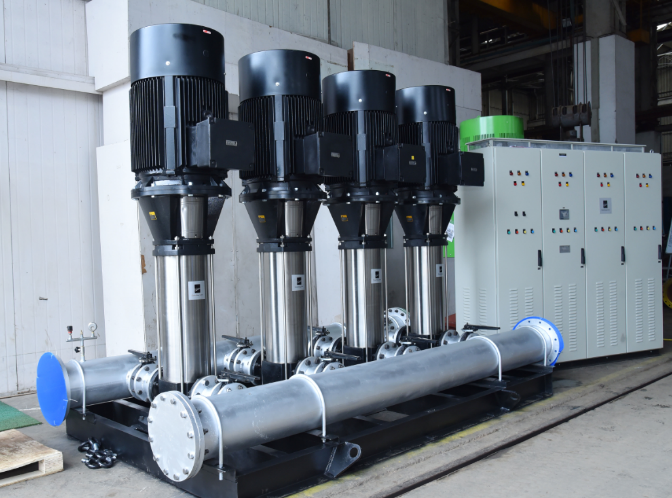

Fixed speed booster sets are fully automatic booster sets for water supply. They are equipped with 2-3 fixed speed pumps (where one can be a jockey pump), control panel, The controller and pressure transmitters, all mounted on a frame for easy installation. The controller is easy to set and can be connected to a BMS system via Modbus.
Special Feature
Flow rate up to 320 m3 /h.
Head up to 160 m.
Electrical panel supply voltage: 3 x 400V ± 10%.
Frequency 50 Hz.
Voltage for controls outside panel: 24 Vac.
Electrical panel protection class IP 55.
Maximum service pump power: 2 x 37 kW.
Motor start-up:
APPLICATIONS
1. Water network supply in condominiums, offices, hotels, shopping centres, factories.
2. Water supply to agricultural water networks (e.g. irrigation).
